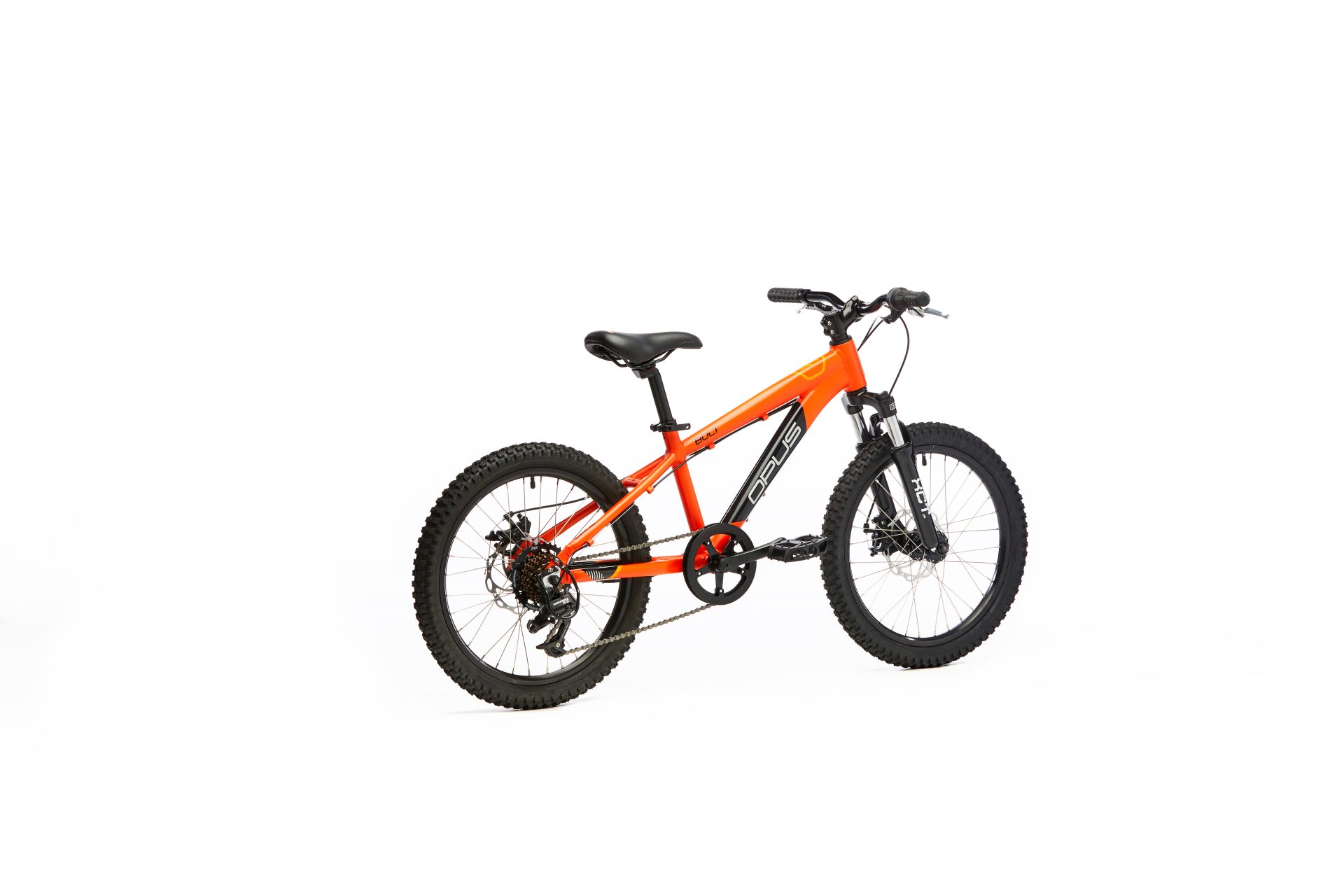

BOLT
20-inch
$ 674.99
Key elements:
- Improved 6061 aluminum frame with shorter chainstays and more tire clearance
- Suntour fork with 63 mm of travel
- Sram 1x7 drivetrain
- Front and Rear 160 mm mechanical disc brakes
- Derailleur protector
Colors:
Technologies

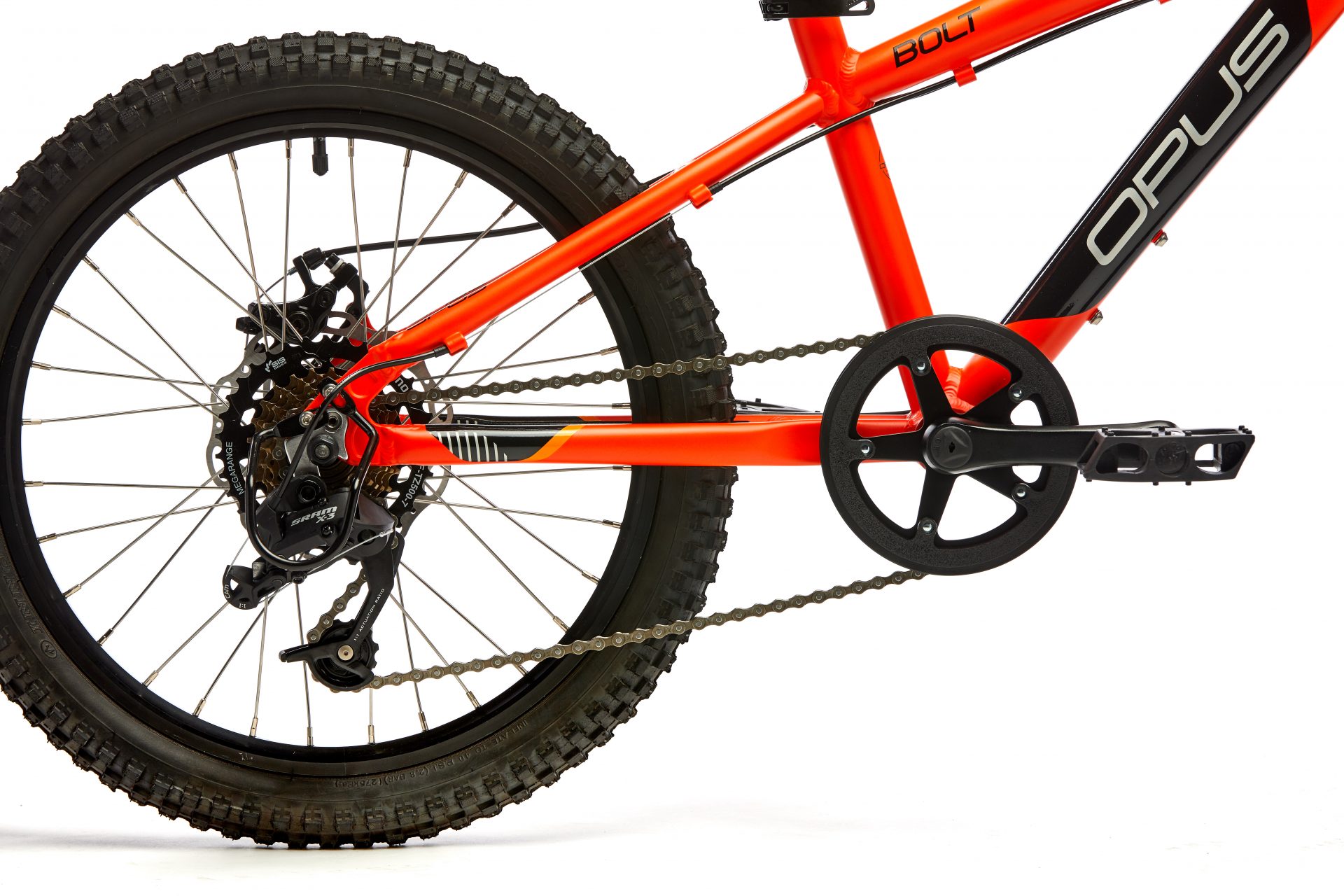

1X7 Gearing
1X7 Gearing
20"
20"
Aluminum Frame
Aluminum Frame

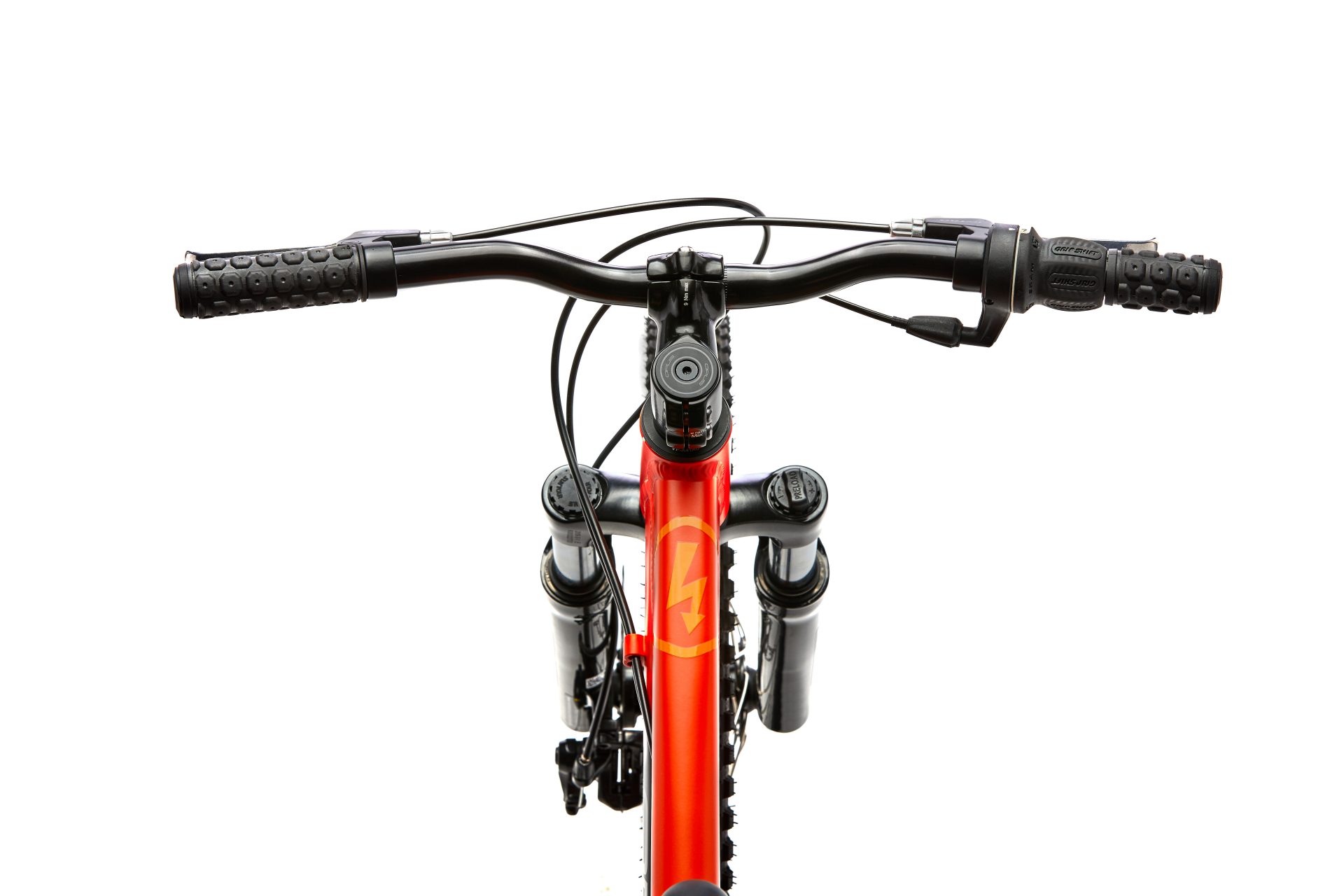

Suspension Fork
Suspension Fork
Characteristics
Frame
Opus 6061 Aluminum
Fork
Suntour XCT JR 63 mm
Weight (lb)
24
Shifters
SRAM 3.0 Twist 7
Front derailleur
N/A
Rear derailleur
SRAM X3
Brakes
Jak-7 mechanical disc brakes - 160 mm
Brakelevers
Jak-7 mechanical disc brake Levers
Crank
Samox alloy 127 mm
Chainrings
36
Bottom bracket
5 pc steel
Cassette
Shimano Tourney 14-34
Chain
KMC Z51
Headset
VP semi-integrated sealed
Handlebar
Opus Junior 25.4
Stem
Promax 60 mm 15°
Grips tape
Opus Kraton
Saddle
Opus Junior
Seatpost
Opus Junior 27.2 x 300
Wheels rims
Ace disc double wall
Hubs
Joytech
Tires
Innova IA-2021 20 x 2.35
Pedals
Wellgo resin
Other
Pedals included
Geometry
| Size | 20″ |
| Rider’s height (± CM) | 620 |
| Rider’s age | 6-8 |
| S – Seat tube | 295 |
| TT – Top tube | 455 |
| HT – Head tube | 100 |
| HA – Head angle | 71 |
| SA – Seat angle | 74 |
| CS – Chain stay | 370 |
| D – BB drop | 8 |
| ST – Stack | 420 |
| RE – Reach | 334 |
| SO – Stand over | 524 |
| Handlebar width (mm) | 540 |
| Stem length (mm) | 60 |
| Crank length (mm) | 127 |
