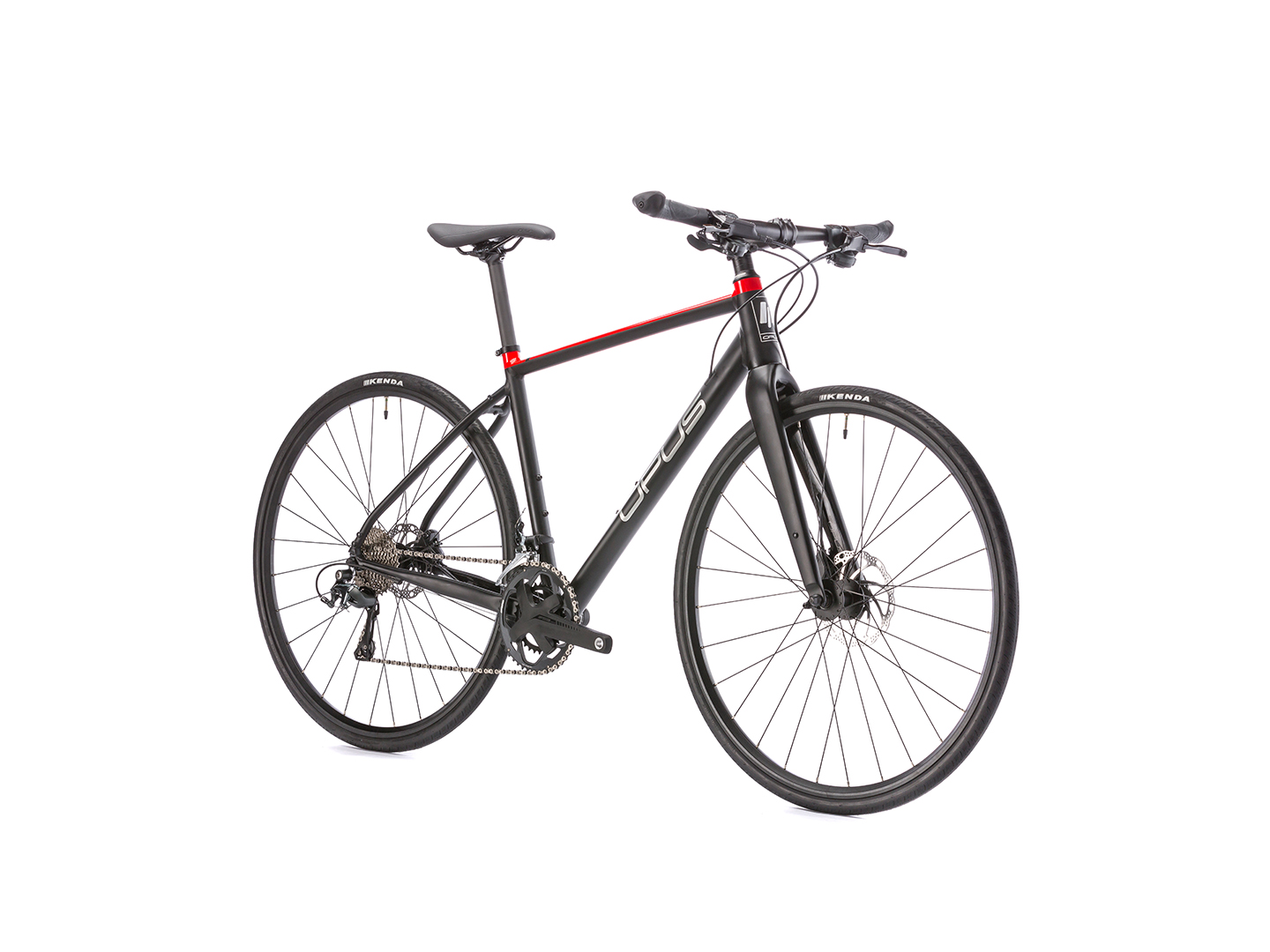

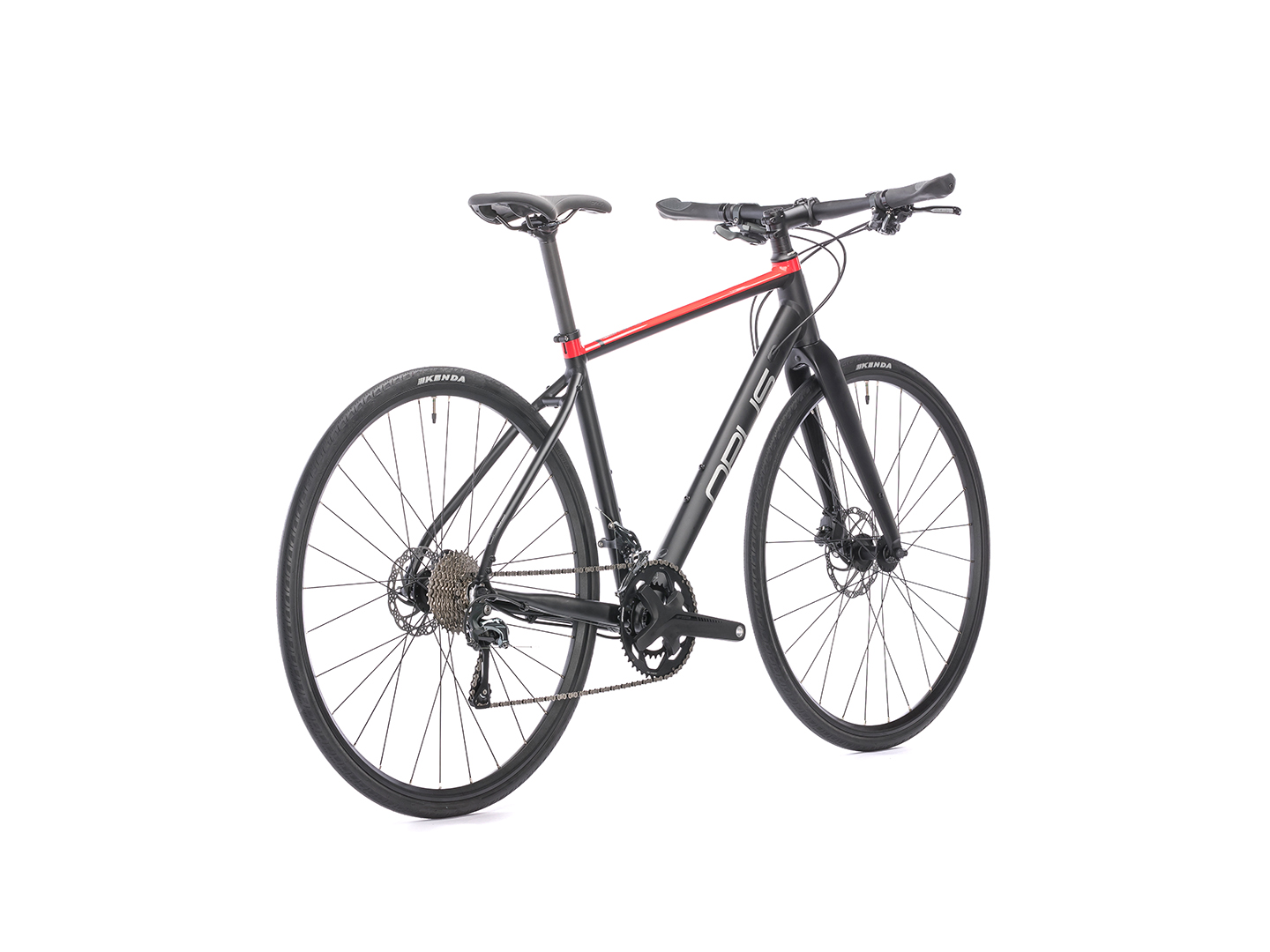

CITATO TIAGRA
Shimano Tiagra 4700 2x10
$ 1599.99
Key elements:
- Fun and responsive Progressive Geometry
- Full carbon fork
- Shimano Tiagra 4700 2x10 drivetrain
- High performance 30mm tires on wide rims give efficient and comfortable profile
- Carbon seat post
Colors:
Technologies
2X10 Gearing
2X10 Gearing
Aluminum Frame
Aluminum Frame
Carbon Fork
Carbon Fork
Optimized Gearing
Optimized Gearing
Progressive Geometry
Progressive Geometry
XS-XL
XS-XL
Characteristics
Frame
Meta 20 aluminum
Fork
Carbon tapered 1-1/4 to 1-1/8 in
Weight (lb)
22.4
Sizes
XS S M L L XL
Shifters
Shimano Tiagra 4700 2 x 10
Front derailleur
Shimano Tiagra 4700
Rear derailleur
Shimano Tiagra 4700 long cage
Brakes
Tektro HD-R280 hydraulic disc
Brakelevers
Tektro
Crank
FSA Omega Adventure
Chainrings
46-30
Bottom bracket
FSA BB-4000
Cassette
Shimano 11-32t
Chain
KMC-X10
Headset
FSA Orbit integrated sealed
Handlebar
Alloy butted 12 mm rise
Stem
Promax
Grips tape
Velo ERGO w/small bar ends
Saddle
Opus Endurance
Seatpost
Promax carbon 27.2 x 300
Wheels rims
Weinmann Aquila 21
Hubs
Alex Bear Pawls
Tires
Kenda Kriterium Sport 700 x 30
Pedals
N/A
Other
Front and rear-rack and fender ready
Geometry
| Size | XS | S | M | L | XL |
| Rider’s height (± 5CM) | 155 | 164 | 173 | 182 | 191 |
| Rider’s height (± 2″) | 5’1” | 5’4.5” | 5’8” | 5’11.5” | 6’3″ |
| S – Seat tube | 380 | 430 | 480 | 530 | 580 |
| TT – Top tube | 535 | 554 | 573 | 592 | 612 |
| HT – Head tube | 106 | 125 | 148 | 171 | 190 |
| HA – Head angle | 71 | 71.5 | 72 | 72 | 72.5 |
| SA – Seat angle | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CS – Chain stay | 430 | 435 | 435 | 435 | 440 |
| D – BB drop | 75 | 75 | 72 | 70 | 70 |
| ST – Stack | 540 | 560 | 580 | 600 | 620 |
| RE – Reach | 385 | 393 | 401 | 408 | 416 |
| SO – Stand over | 715 | 748 | 784 | 819 | 852 |
| Handlebar width (mm) | 580 | 600 | 600 | 620 | 620 |
| Stem length (mm) | 80 | 80 | 90 | 90 | 100 |
| Crank length (mm) | 165 | 170 | 172.5 | 172.5 | 175 |
