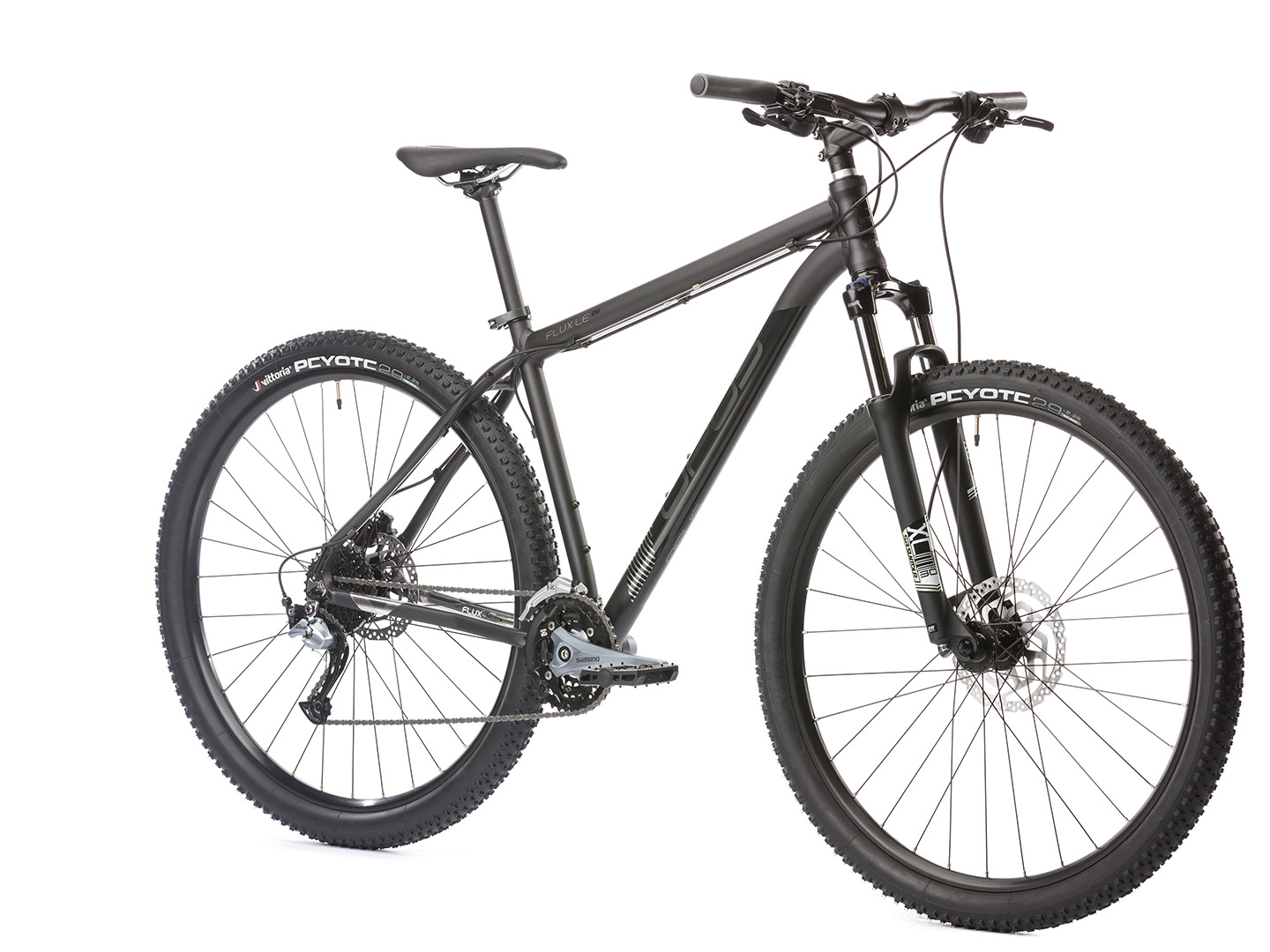

FLUX LE 29
2018
Archive
Key elements:
- Shimano Acera 27 speed drivetrain
- Suntour XCM HLO 100mm fork
- Available in both 29 and 27.5 wheelsizes
Colors:
Characteristics
Frame
Meta 20 6061 Aluminum
Fork
Suntour XCM HLO 100mm With Lockout
Weight (lb)
33.4
Sizes
S M L L XL
Shifters
Shimano Acera 3000 3 x 9
Front derailleur
Shimano Acera 3000
Rear derailleur
Shimano Acera 3000
Brakes
Shimano M315
Brakelevers
Shimano M315
Crank
Shimano Acera 3000
Chainrings
40-30-22
Bottom bracket
Shimano Sealed Cartridge
Cassette
Shimano HG200 11-34
Chain
KMC Z99
Headset
VP Semi-Integrated
Handlebar
Opus Silver 15 mm Rise 31.8
Stem
Opus Silver 7°
Grips tape
Velo Lightweight Silicone
Saddle
Opus Endurance
Seatpost
Zoom Alloy 27.2 x 350
Wheels rims
Alex MD23
Hubs
Joytech QR
Tires
Vittoria Peyote 29 x 2.25
Pedals
FPD NW-420
Geometry
| Size | S | M | L | XL |
| Rider’s height (± 5CM) | 163 | 170 | 178 | 185 |
| Rider’s height (± 2″) | 5’4” | 5’7” | 5’10” | 6’1” |
| S – Seat tube | 380 | 420 | 480 | 530 |
| TT – Top tube | 578 | 600 | 620 | 640 |
| HT – Head tube | 110 | 110 | 120 | 130 |
| HA – Head angle | 71 | 71.5 | 72 | 72 |
| SA – Seat angle | 73 | 73 | 72 | 73 |
| CS – Chain stay | 445 | 445 | 445 | 445 |
| D – BB drop | 60 | 60 | 60 | 60 |
| ST – Stack | 608 | 610 | 644 | 654 |
| RE – Reach | 382 | 403 | 412 | 430 |
| SO – Stand over | 776 | 800 | 836 | 867 |
| Handlebar width (mm) | 720 | 720 | 720 | 720 |
| Stem length (mm) | 75 | 90 | 90 | 110 |
| Crank length (mm) | 170 | 170 | 175 | 175 |
