HORIZON FRAMESET
2019
Archive
Key elements:

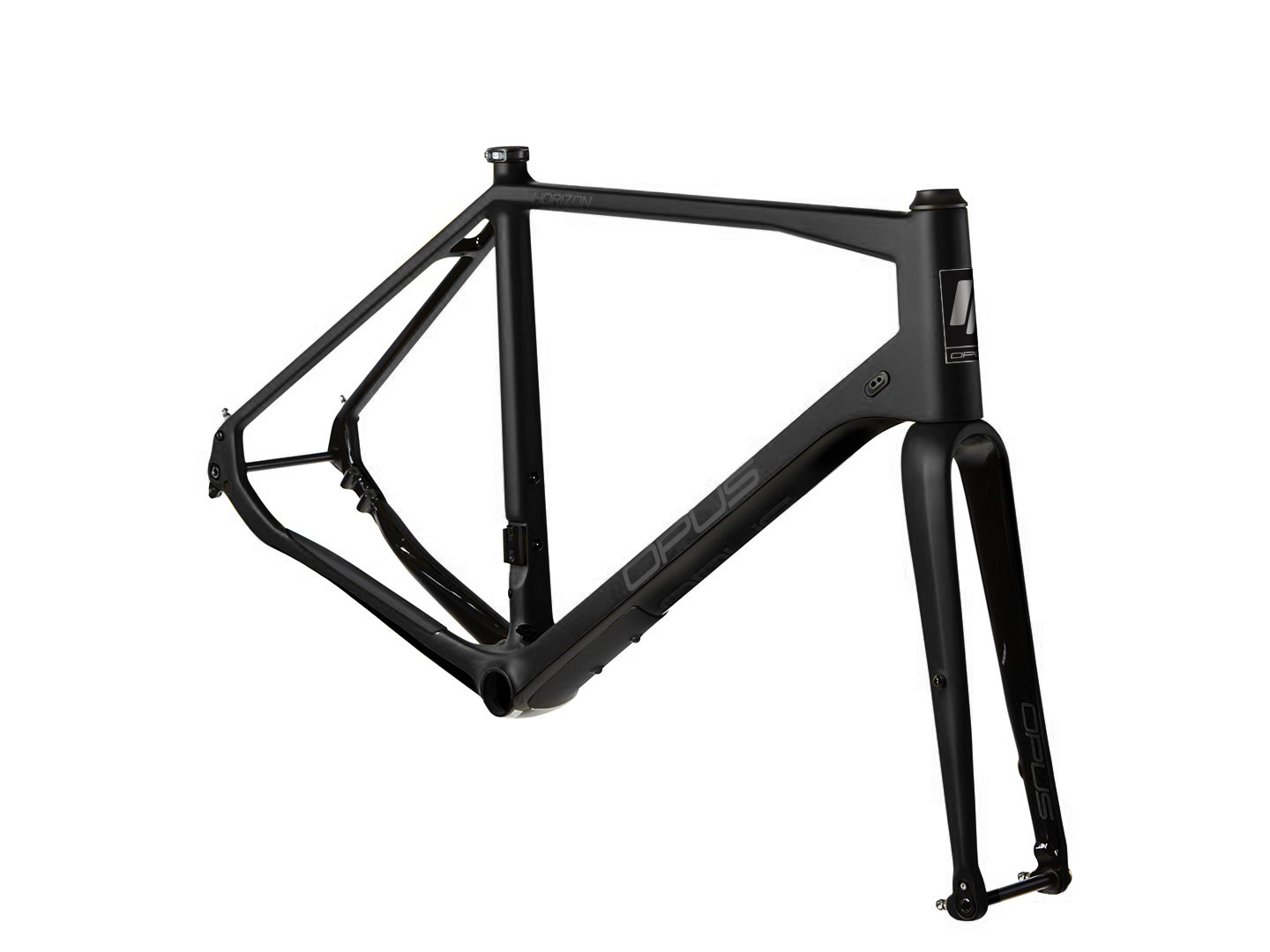

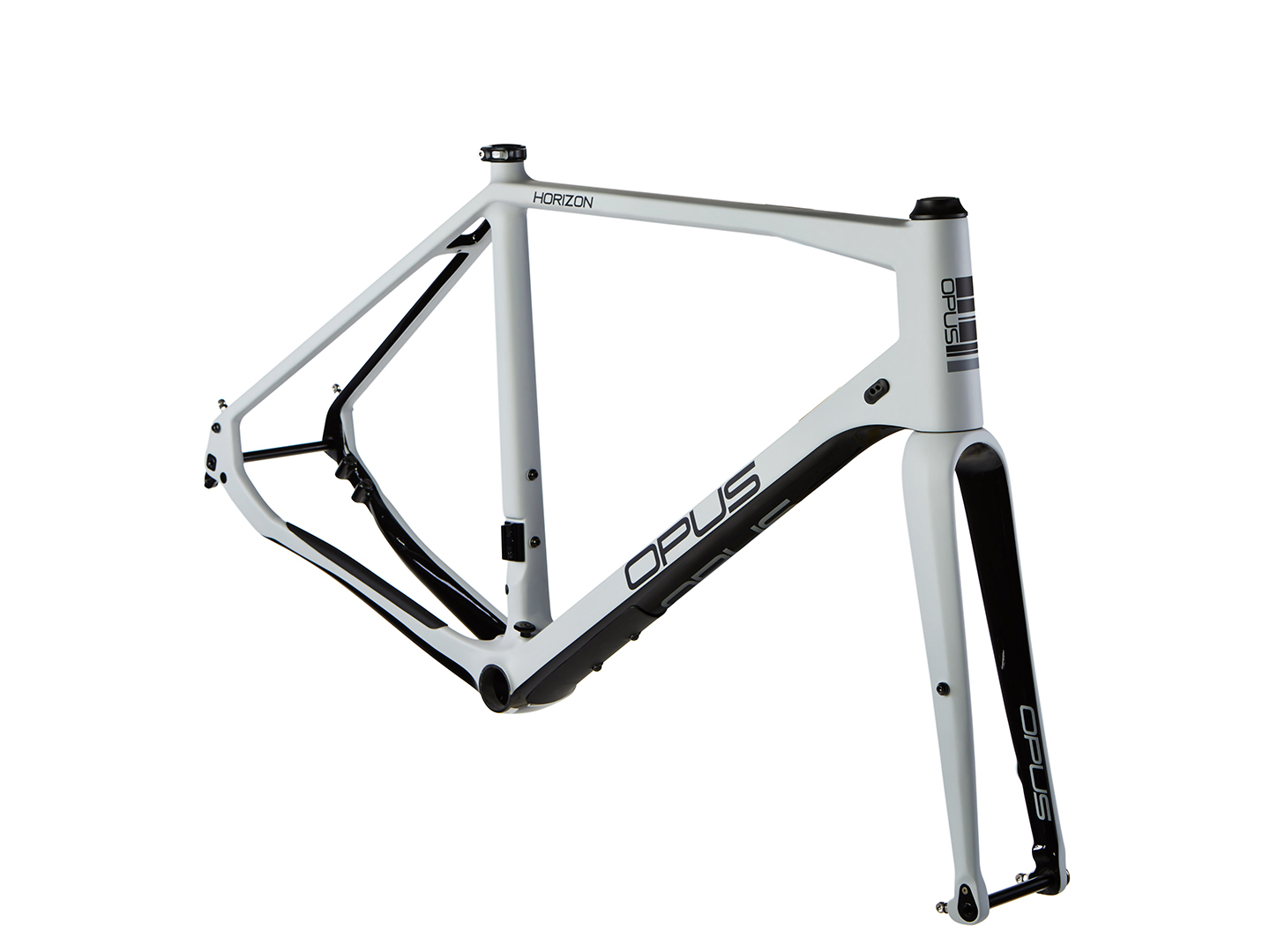

- Full carbon frame and fork
- Flat Mount disc brake standard
- Includes 12 mm through axles front/rear and downtube bash guard
Colors:
Characteristics
Frame
Gamma 30 Carbon
Fork
Full Carbon Tapered 1-1/2 to 1-1/8 in
Sizes
XS S M L L XL
Front derailleur
Tab for braze-on style
Brakes
Flat Mounts (Disc)
Bottom bracket
For BB86
Headset
For 1-1/2 to 1-1/8 in
Seatpost
For 27.2 mm
Wheels rims
For 700c/650b
Hubs
12 mm through axle front/rear
Other
Internal Dropper Post Ready/D12 Compatible
Other
Fr/Rr Rack and Fender Mounts With Hardware
Geometry
| Size | XXS | XS | S | M | L | XL |
| Rider’s height (± 5CM) | 155 | 160 | 168 | 175 | 183 | 190 |
| Rider’s height (± 2″) | 5’1″ | 5’3″ | 5’6″ | 5’9″ | 6’0″ | 6’3″ |
| S – Seat tube | 420 | 450 | 480 | 510 | 545 | 580 |
| TT – Top tube | 502 | 520 | 539 | 559 | 578 | 599 |
| HT – Head tube | 113 | 133 | 153 | 173 | 193 | 213 |
| HA – Head angle | 70 | 70.5 | 71 | 71.5 | 72 | 72.5 |
| SA – Seat angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CS – Chain stay | 425 | 425 | 427 | 427 | 429 | 429 |
| D – BB drop | 77 | 76 | 75 | 74 | 73 | 72 |
| ST – Stack | 530 | 550 | 570 | 590 | 610 | 630 |
| RE – Reach | 360 | 368 | 376 | 384 | 392 | 400 |
| SO – Stand over | 725 | 752 | 777 | 803 | 833 | 860 |
| Handlebar width (mm) | 380 | 400 | 420 | 420 | 440 | 460 |
| Stem length (mm) | 80 | 90 | 100 | 100 | 110 | 110 |
| Crank length (mm) | 165 | 170 | 172.5 | 172.5 | 172.5 | 175 |
