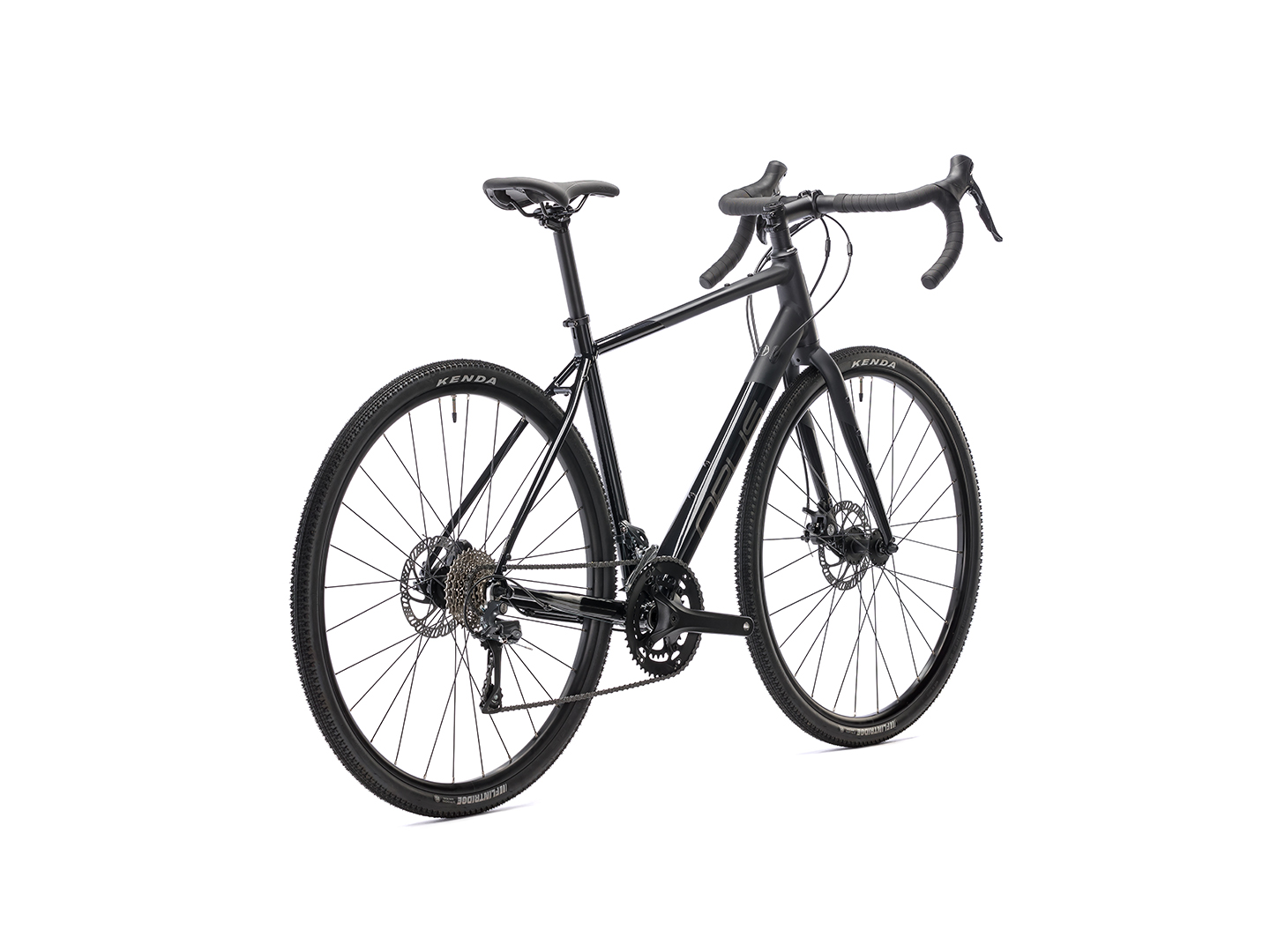

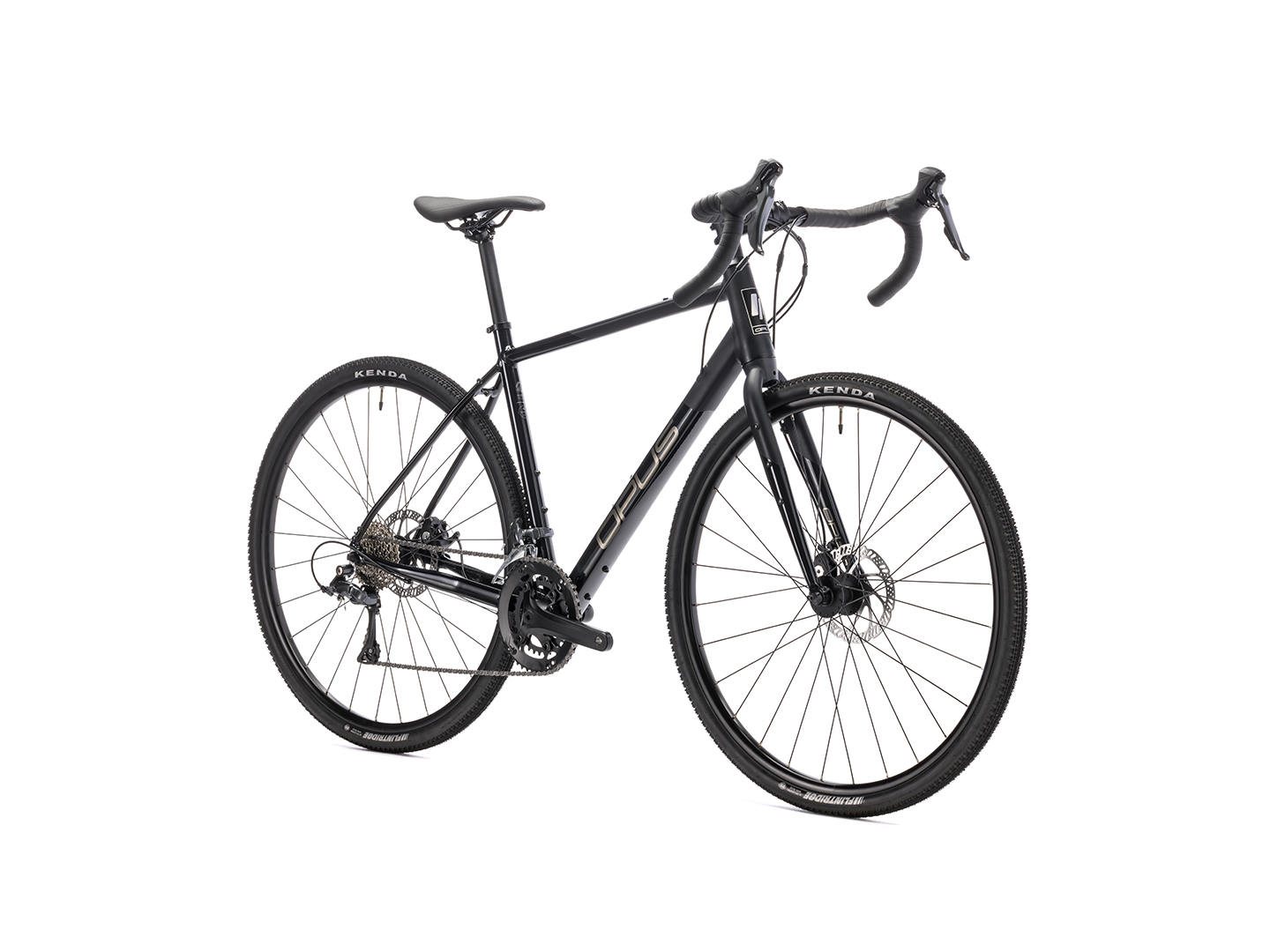

HORIZON QR
Aluminum / Claris R2000
$ 1349
Key elements:
- Proven Horizon Progressive Geometry to master all surfaces
- Rugged steel fork with triple mounts for bottle or bags
- 8 Speed Shimano Claris drivetrain with QR wheels
- Big clearance for 700 x 40 tires
- Rear rack and fender mounts, 5 bottle and top tube mounts
Colors:
Technologies
2X8 Gearing
2X8 Gearing
Aluminum Frame
Aluminum Frame
Optimized Gearing
Optimized Gearing
Progressive Geometry
Progressive Geometry
XXS-XL
XXS-XL
Characteristics
Frame
Aluminum
Fork
Steel tapered 1-1/2 to 1-1/8 in
Weight (lb)
26.6
Sizes
XXS XS S M L L XL
Shifters
Shimano Claris R2000 2 x 8
Front derailleur
Shimano Claris R2000
Rear derailleur
Shimano Claris R2000
Brakes
Tektro MD-310 Flat Mount mechanical disc
Brakelevers
Shimano
Crank
Prowheel RPL-421
Chainrings
48-32
Bottom bracket
sealed BSC threaded
Cassette
Shimano 11-32t
Chain
KMC Z8.3
Headset
FSA Orbit integrated sealed
Handlebar
Alloy butted 16° flare
Stem
Promax
Grips tape
Velo VexGel diamond grip
Saddle
Opus Endurance
Seatpost
Promax alloy 27.2 x 300
Wheels rims
Weinmann U28
Hubs
Alex Bear Pawls QR fr/rr
Tires
Kenda Flintridge Sport 700 x 35
Pedals
N/A
Other
Top tube bag mount
Other
Fr/rr rack and fender mounts
Geometry
| Size | XXS | XS | S | M | L | XL |
| Rider’s height (± 5CM) | 155 | 160 | 168 | 175 | 183 | 190 |
| Rider’s height (± 2″) | 5’1″ | 5’3” | 5’6″ | 5’9” | 6’0” | 6’3″ |
| S – Seat tube | 420 | 450 | 480 | 510 | 545 | 580 |
| TT – Top tube | 515 | 530 | 544 | 559 | 578 | 599 |
| HT – Head tube | 98 | 118 | 138 | 158 | 178 | 198 |
| HA – Head angle | 69.75 | 70.5 | 71 | 71.5 | 72 | 72.5 |
| SA – Seat angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CS – Chain stay | 425 | 425 | 427 | 427 | 429 | 429 |
| D – BB drop | 80 | 78 | 76 | 74 | 73 | 72 |
| ST – Stack | 534 | 553 | 572 | 590 | 610 | 630 |
| RE – Reach | 372 | 376 | 380 | 384 | 392 | 400 |
| SO – Stand over | 718 | 743 | 766 | 791 | 818 | 847 |
| Handlebar width (mm) | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem length (mm) | 70 | 80 | 90 | 100 | 110 | 110 |
| Crank length (mm) | 165 | 170 | 172.5 | 172.5 | 172.5 | 175 |
